Description

High-Strength Magnetic Mount for Mobile Radio Antennas

Ensure a secure and reliable mobile antenna installation with this heavy-duty, low-profile magnetic mounting system.

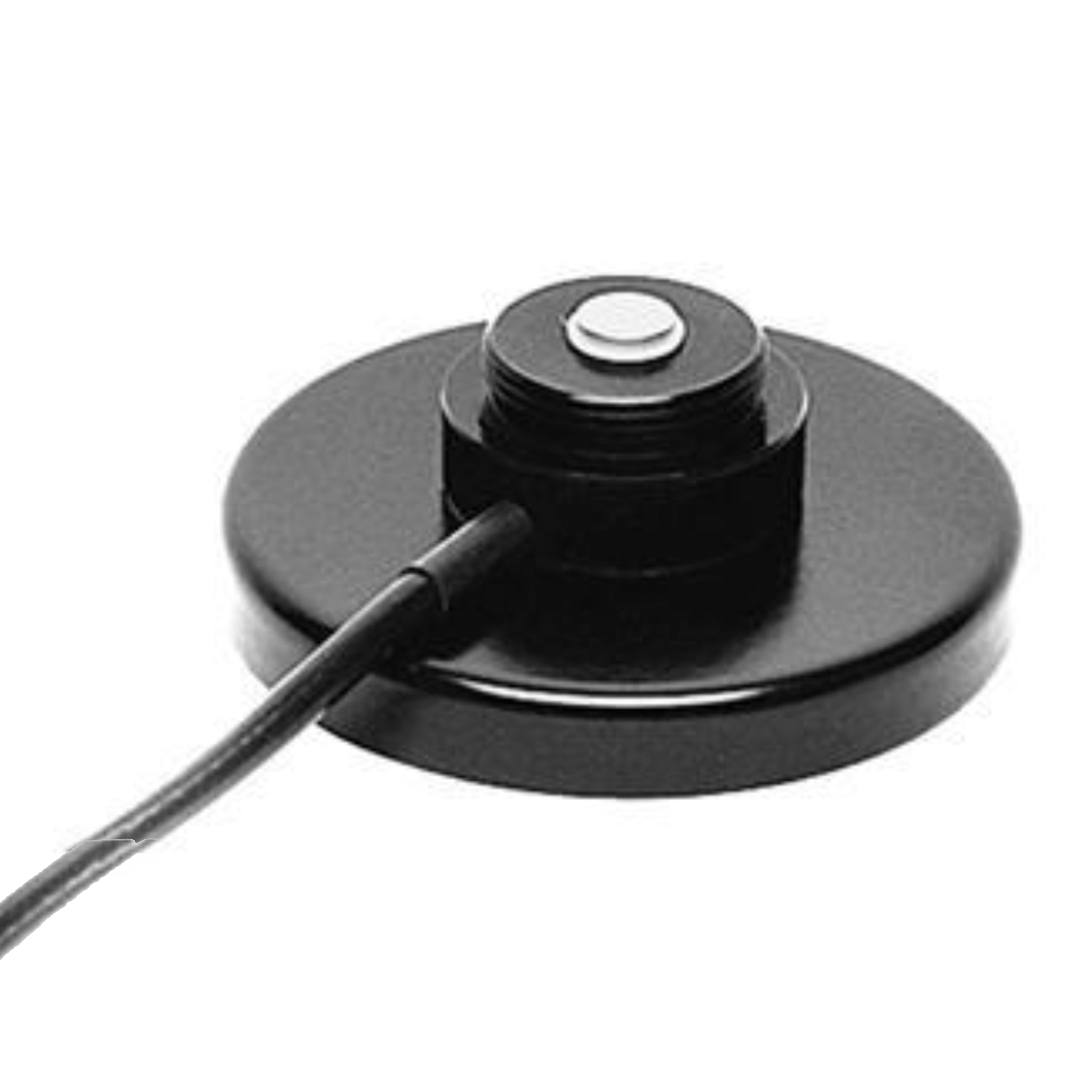

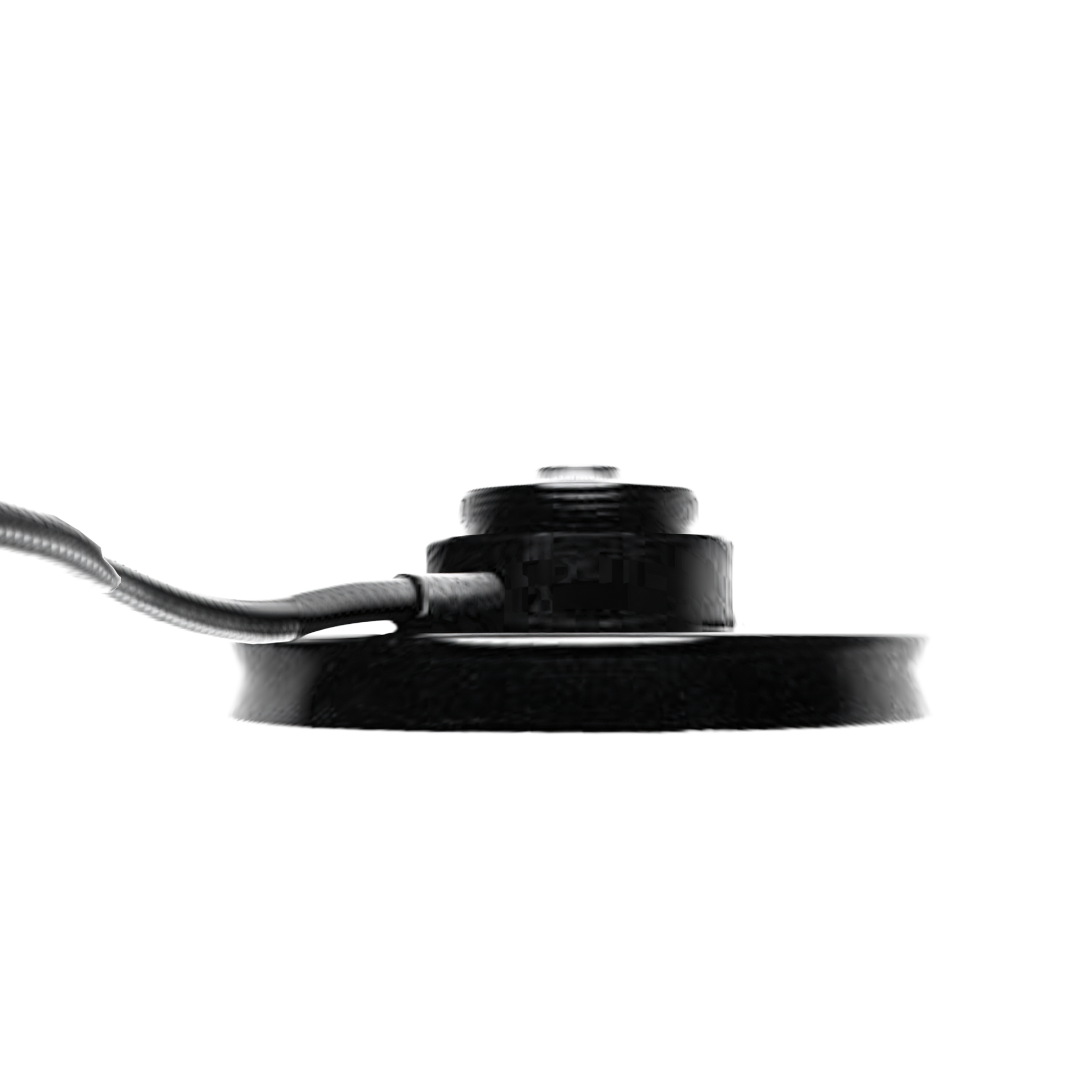

The PCTEL BG is a professional-grade magnetic mount designed for high-performance mobile radio applications across the 0-512 MHz frequency range. Engineered for durability and ease of deployment, this mount features a powerful 3-1/4 inch permanent magnet base that provides exceptional grip on flat vehicle surfaces, even at high speeds. The sleek black finish provides a low-profile, professional aesthetic suitable for public safety vehicles, service trucks, and undercover operations.

This complete mounting assembly includes 12 feet of high-quality RG58A/U coaxial cable, providing ample length for clean routing from the roof or trunk to the radio chassis. The cable is factory-terminated with a professional UHF Male (PL-259) connector, ensuring a secure, low-loss connection to the antenna port of your mobile radio. Designed to accept standard 1-1/8" - 18 thread antennas, the PCTEL BG is a versatile and reliable solution for users who require a temporary or non-permanent antenna mounting solution without drilling holes in the vehicle.

Key Features & Benefits

• Broad Frequency Support: Optimized for seamless operation across the 0-512 MHz band, supporting VHF, UHF, and specialized mobile frequencies.
• Heavy-Duty Magnetic Base: High-pull strength 3-1/4" magnet ensures the antenna remains securely attached during high-speed vehicle maneuvers.
• Integrated Coaxial Cable: Includes 12 feet of RG58A/U cable, providing a flexible and durable signal path for mobile installations.
• Pre-Terminated Connector: Features a factory-installed UHF Male (PL-259) connector for immediate "plug-and-play" connectivity to mobile radios.
• Non-Invasive Installation: Allows for a professional antenna setup without the need for drilling or permanent vehicle modifications.

Specifications

Compatibility

Recommended Accessories

• Hytera HM782 Digital Mobile Radio (HM782) — Professional-tier DMR mobile radio featuring a standard UHF connector compatible with this mount.
• Icom IC-F5021 VHF Mobile Radio (F5021) — Rugged 50-watt analog mobile radio that pairs with this PL-259 terminated cable.

Frequently Asked Questions

Does this mount include the antenna?

No. The PCTEL BG is the magnetic base and cable assembly only. You must purchase a compatible 1-1/8"-18 thread antenna separately to complete the system.

Will the magnet scratch my vehicle's paint?

The PCTEL BG features a protective coating, but it is recommended to ensure the vehicle surface is clean and dry before mounting to prevent debris from causing scratches.

Can I use this mount for a 700/800 MHz antenna?

Yes. The mount is rated up to 512 MHz, but it is physically compatible with most standard mobile antennas. For 700/800 MHz applications, signal loss may increase depending on the specific antenna used.

Warranty

1-year manufacturer's warranty.

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
