Professional Rear Accessory Interface for CDM and PRO Series The Motorola AARKN4083A is a high-grade programming and test cable designed... Read more
$103.00
Guaranteed secure & safe checkout.

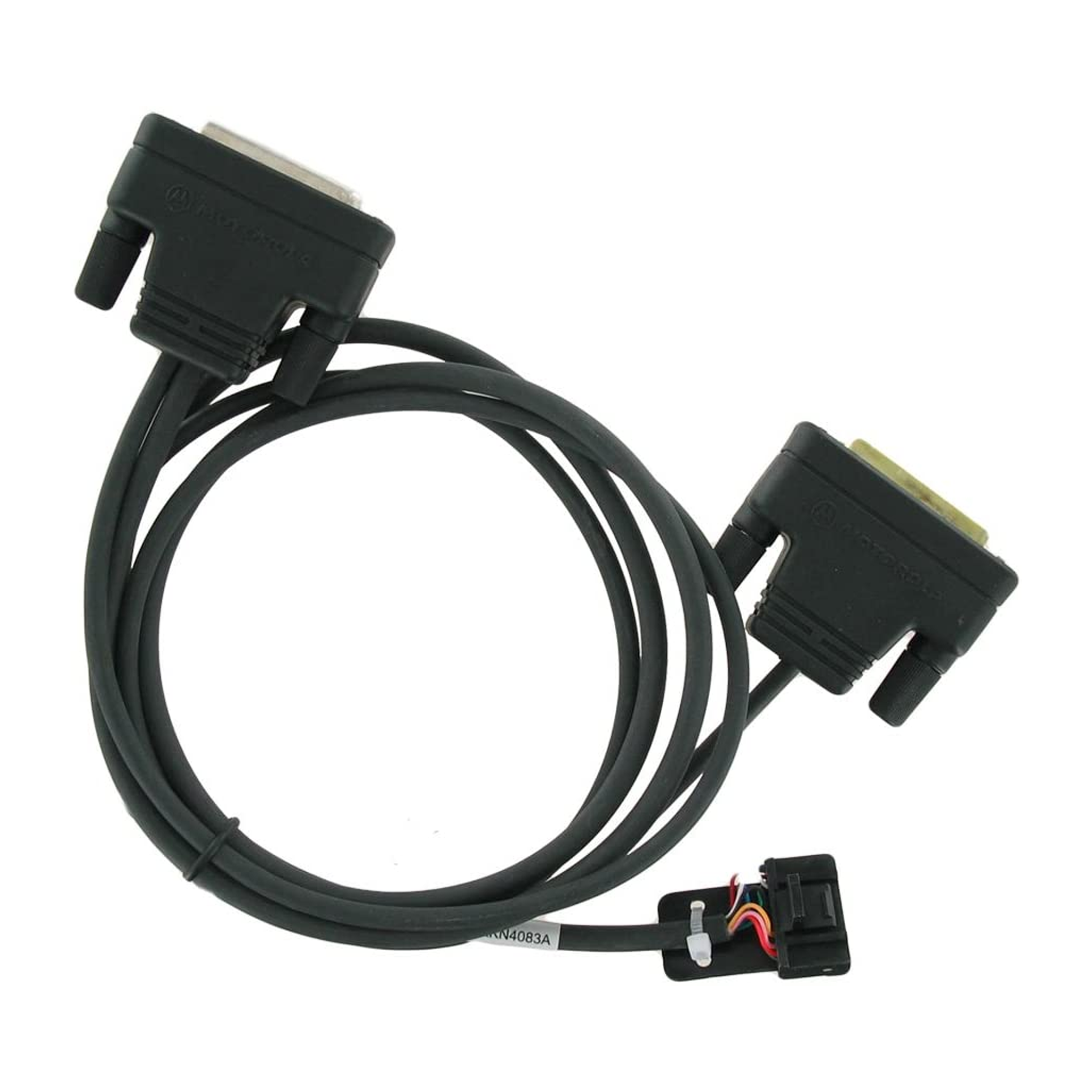

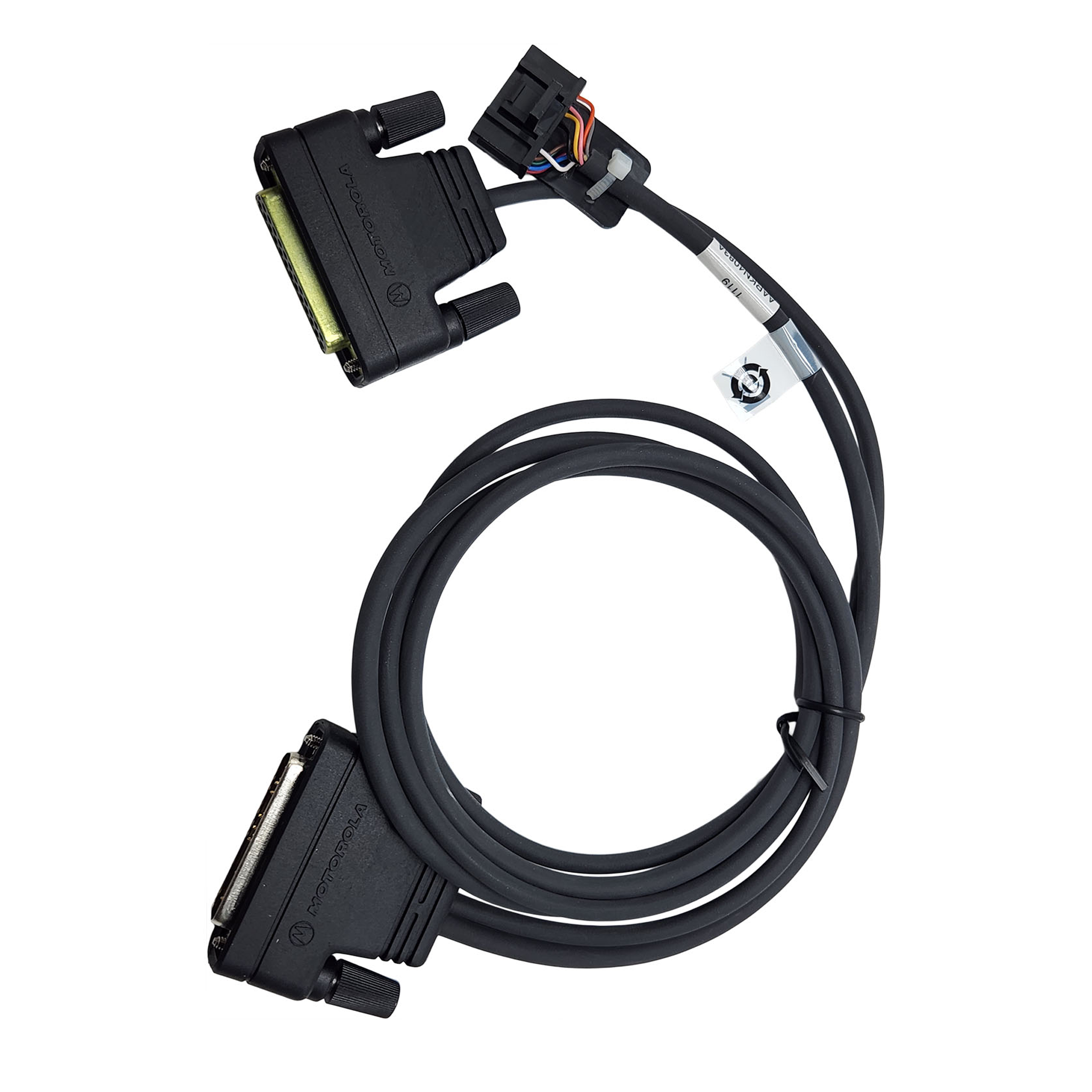

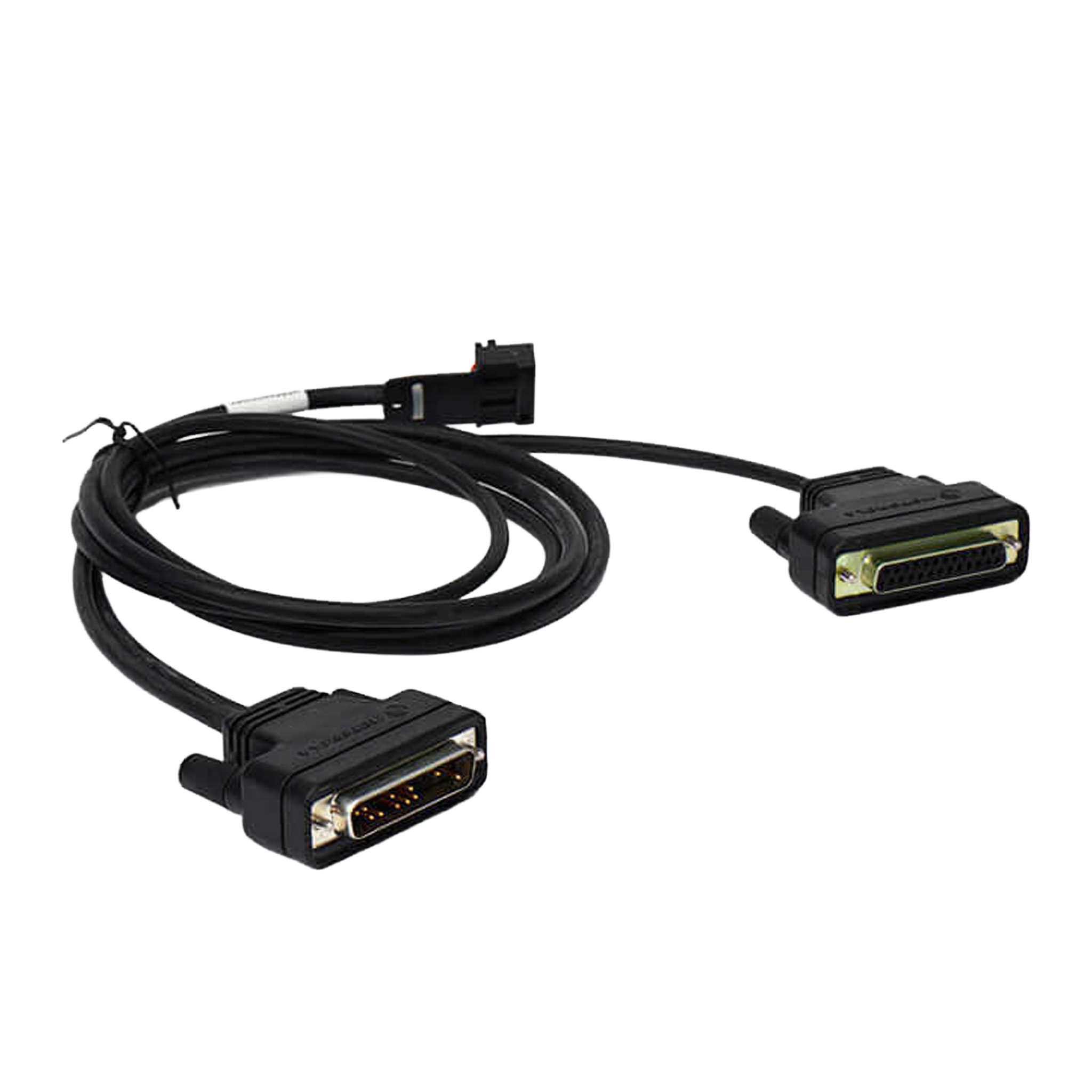

The Motorola AARKN4083A is a high-grade programming and test cable designed for professional mobile radios. Unlike standard front-mic programming cables, the AARKN4083A interfaces directly with the radio's rear accessory connector. This allows technicians to program, align, and test the transceiver without disconnecting the front-panel microphone, making it an essential tool for bench testing, service center diagnostics, and complex vehicle installations.
As a genuine Motorola Solutions accessory, this cable acts as the critical data link between a Radio Interface Box (RIB) and the radio chassis. It is specifically engineered for the robust MOTOTRBO legacy and Professional Series mobile radios, including the popular CDM and GM families. Its heavy-duty construction ensures stable data transmission during sensitive firmware flashes and frequency alignments, protecting the radio's internal circuitry from communication errors.
| Feature | Specification |
| Part Number | AARKN4083A (AARKN4083) |
| Interface Style | Radio (Rear Port) to RIB Box |

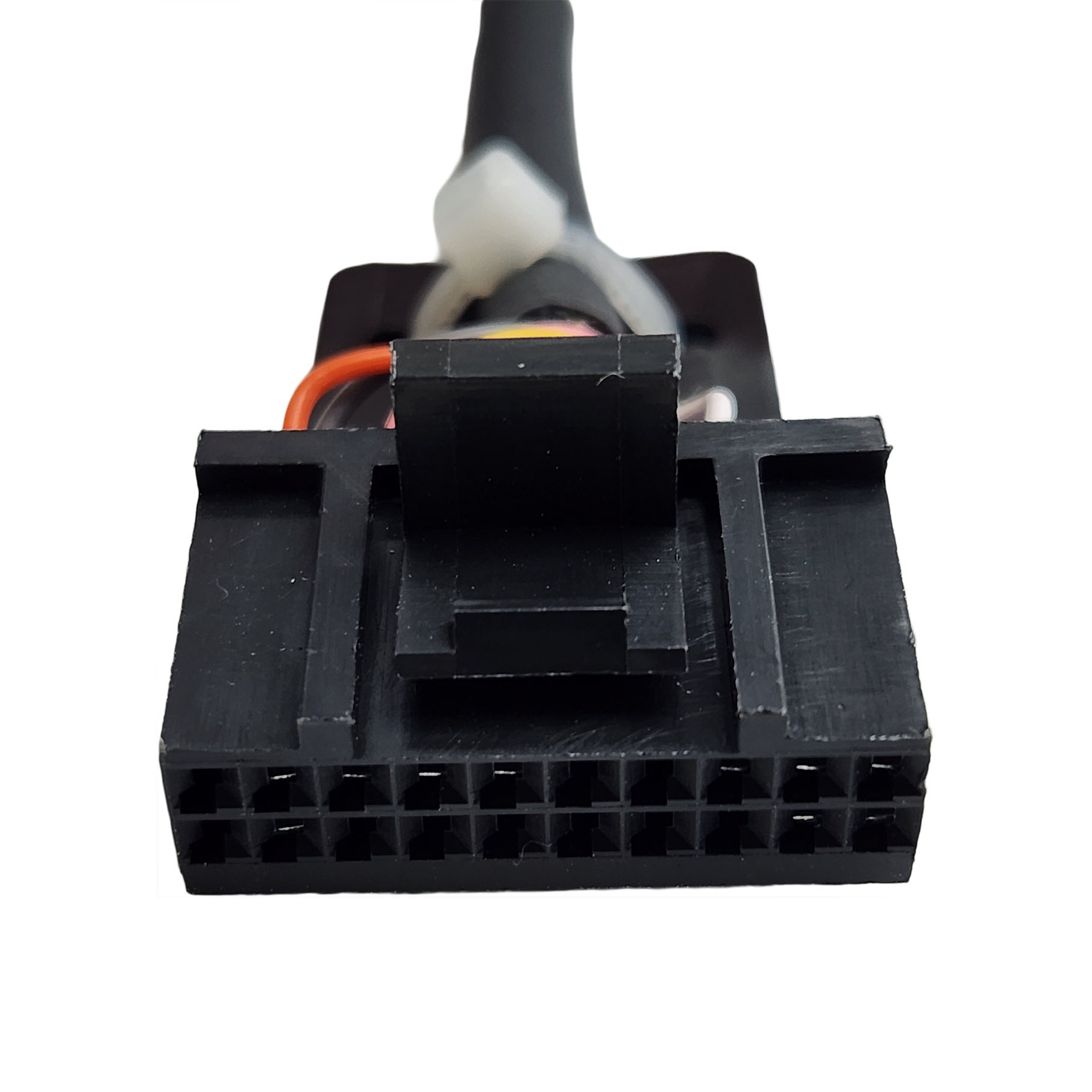

| Connector Type | 20-Pin Accessory Plug |
| Application | Programming, Alignment, and Testing |
| Color | Black |
| Warranty | 1-Year Manufacturer's Warranty |
| CDM750 | CDM1250 | CDM1550 | CDM1550.LS |
| CDM1550.LS+ | PRO3100 | PRO5100 | PRO7100 |
| GM140 | GM160 | GM338 | GM340 |
| GM360 | GM380 | GM640 | GM660 |
| GM1280 | GM3188 | GM3189 | GM3688 |
| MCX760 | MCX780 |
Does this cable plug directly into my computer? No. The AARKN4083A requires a Radio Interface Box (RIB) to function. It connects the radio to the RIB, which then connects to your computer via a serial cable.
Can I use this for the PM400 mobile radio? Yes, however, use with the PM400 requires the additional FKN8113 adapter.
Is this cable returnable? No. Per manufacturer policy, programming and test cables are considered specialized service tools and are not returnable once purchased.
Why use the rear port instead of the mic jack? The rear port provides access to additional data pins and audio paths that are sometimes necessary for advanced testing, alignment, and certain firmware configurations that the front mic port may not support.
1-year manufacturer's warranty.
