Description

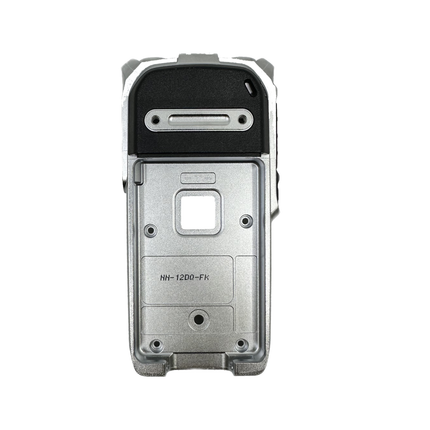

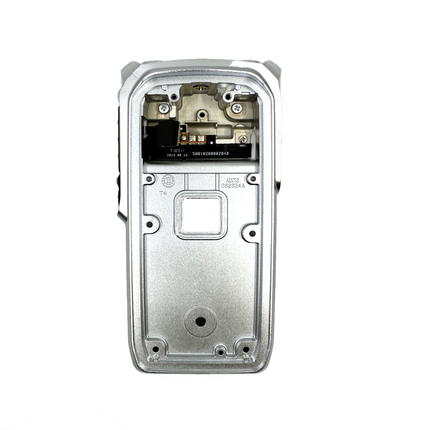

Hytera HYT-11530000000049

Aluminum Chassis Replacement Kit for PD602i

Precision-Engineered Internal Frame for Mission-Critical Service and Repair

The Hytera HYT-11530000000049 (also identified as 6300228000000) is a genuine internal aluminum chassis kit designed specifically for the professional servicing of Hytera PD602i handheld digital radios. The chassis serves as the structural backbone of the radio, providing essential heat dissipation for the power amplifier and a rigid mounting surface for the main PCB and high-tolerance internal components. This kit is a critical resource for authorized service centers and radio technicians tasked with restoring the structural integrity of devices subjected to severe physical impact or environmental stress.

This comprehensive service kit includes the integrated PTT (Push-To-Talk) assembly and the essential internal flex cable, ensuring that the primary control interface and electrical pathways are refreshed during the rebuild. The chassis is manufactured to exact factory tolerances to maintain the radio's original IP-rated seal, protecting sensitive electronics from moisture and dust ingress. Built with high-grade, lightweight aluminum, this frame ensures the Hytera PD602i continues to meet MIL-STD-810 ruggedness specifications in the field.

As a high-level service part, the HYT-11530000000049 is compliant with RoHS environmental standards. It is delivered as the "without motor" variant, intended for use in configurations where the existing vibration motor is transferred or not required. Utilizing this genuine factory component is necessary to ensure proper grounding and RF shielding, preventing signal interference and protecting the long-term performance of your digital radio fleet.

Key Features & Benefits

• Original Factory Component: Ensures a perfect mechanical fit and electrical continuity for the PD602i series.
• Includes PTT & Flex Cable: Simplifies the repair process by providing the most critical wear-and-tear control components in a single kit.
• Superior Heat Dissipation: The aluminum alloy construction effectively draws heat away from internal processors and transmitters.
• Maintains Ruggedness: Restores the radio's ability to withstand drops, vibration, and heavy physical pressure.
• RoHS Compliant: Manufactured with environmentally responsible materials and processes.
• RF Shielding Integrity: Provides the precise grounding required to maintain clear digital voice and data transmissions.

Specifications

• Brand: Hytera
• Part Number: HYT-11530000000049 / 6300228000000
• Compatibility Model: PD602i
• Material: High-Grade Aluminum
• Included Parts: Chassis, PTT Button/Housing, Internal Flex Cable
• Motor Configuration: Without Motor
• Compliance: RoHS Certified

Compatibility

Recommended Accessories

• Replacement Li-Ion Battery (BL2010)

What's Included

• Hytera HYT-11530000000049 Aluminum Chassis
• Integrated PTT Assembly
• Internal Flex Cable

Frequently Asked Questions

• Does this kit include the vibration motor? No, this is the version without the motor. If haptic feedback is required, the original motor must be transferred.
• Can this be used for the PD662i or PD682i? This chassis is specifically tuned for the PD602i interface; please verify your specific service manual for cross-compatibility.
• Is professional installation required? Yes, internal chassis replacement requires precision tools and technical expertise to avoid damaging the PCB.

Warranty

Standard manufacturer's warranty for service parts

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
