| General |
|
Printer Type
|

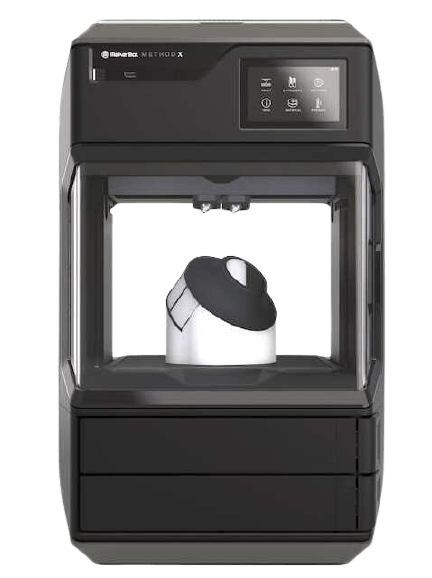

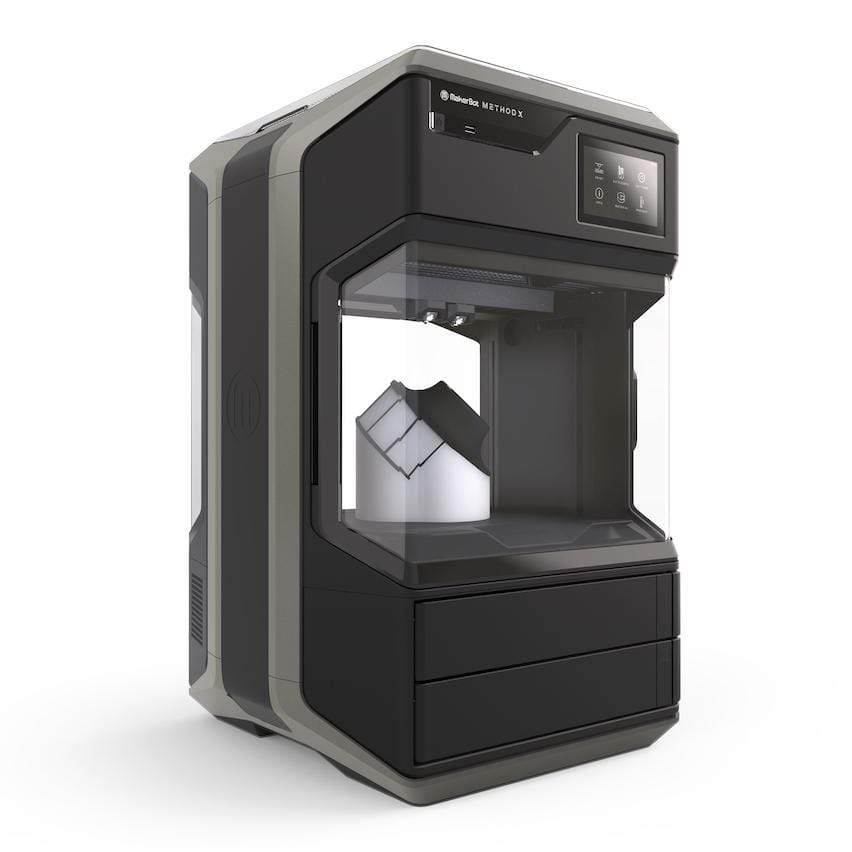

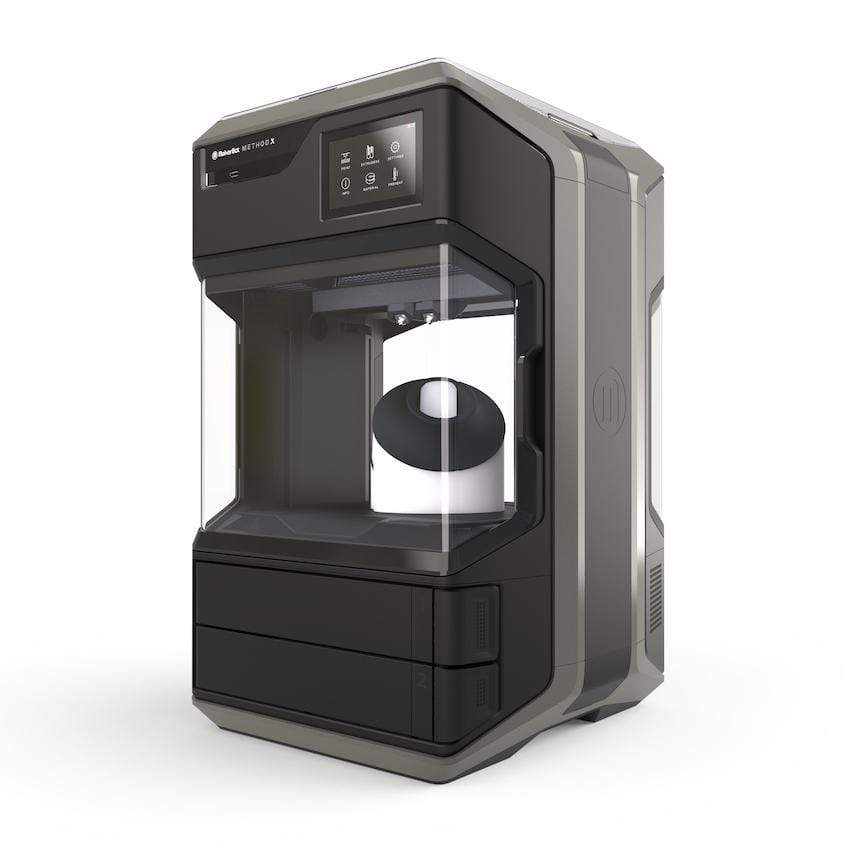

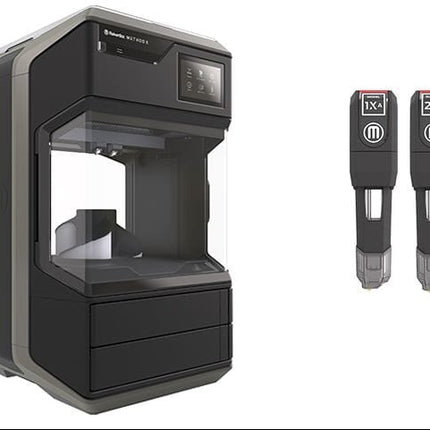

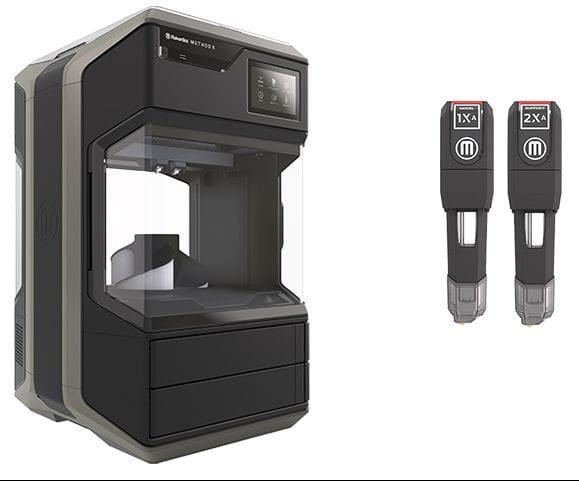

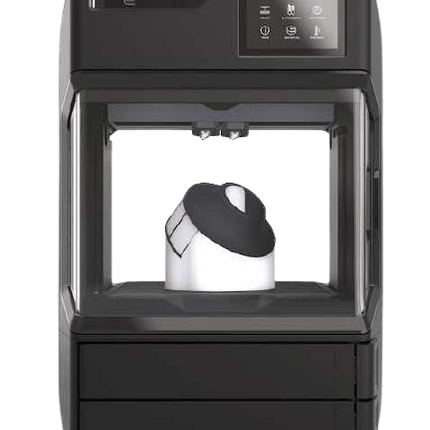

3D printer (Ultimaker Method X) |
|
Technology
|
Fused Deposition Modeling (FDM) |
| Printer |
|
Build Speed
|
1.97 in 3/sec |
|
Built-in Devices
|
Status LCD, RFID reader, jam sensor |
|
Preview Screen Size
|
5" |
|
Connectivity Technology
|
Wireless |
|
Interface
|
USB 2.0, LAN, USB host, Wi-Fi |
|
Resolution
|
0.0008 in - 0.02 in |
|
Input File Formats Supported
|
STL, OBJ, Ultimaker , WRL, SLDPRT, SLDASM, IPT, IAM, IGES, IGS, STEP, STP, CATPart, CATProduct, PRT, PAR, ASM, X_T, X_B |
|
Printer Features
|
Built-in camera, flex build plate, material detection, automatic z calibration, automatic nozzle calibration, automatic material loading |
| Media Handling |
|
Build Materials Supported
|
Polylactide (PLA), acrylonitrile butadiene styrene (ABS), polyvinyl alcohol (PVA), PETG, Tough PLA |
|
Max Build Size
|
7.48 in x 7.48 in x 7.72 in |
|
Nozzle Diameter
|
0.02 in |
| Networking |
|
Networking
|
Print server |
| Expansion / Connectivity |
|
Connections
|
1 x LAN - RJ-45 USB 2.0 USB host |
| Miscellaneous |
|
MTBF
|
220,000 hour(s) |
|
Features
|
Temperature sensor, humidity sensor, lid sensor, door sensor |
|
Compliant Standards
|
EMC, FCC, LVD 60950-1 |
| Power |
|
Voltage Required
|
AC 120/230 V |
|
Frequency Required
|
50/60 Hz |
|
Power Consumption Operational
|
800 Watt |
| Software / System Requirements |
|
Software Included
|
Ultimaker Mobile, Ultimaker Print |
|
OS Required
|
Microsoft Windows 7, Apple MacOS X 10.9 or later, Windows 10 |
| Manufacturer Warranty |
|
Service & Support
|
Limited warranty - 1 year |
| Environmental Parameters |
|
Min Operating Temperature
|
59 °F |
|
Max Operating Temperature
|
78.8 °F |
|
Humidity Range Operating
|
10 - 90% (non-condensing) |
| Dimensions & Weight |
|
Width
|
17.2 in |
|
Depth
|
16.3 in |
|
Height
|
25.6 in |
|
Weight
|
65.04 lbs |
| Dimensions & Weight (Shipping) for Ultimaker Method X |
|
Width (Shipping)
|
19.7 in |
|
Depth (Shipping)
|
21.9 in |
|
Height (Shipping)
|
30.1 in |
|
Weight (Shipping)
|
81.79 lbs |
