Description

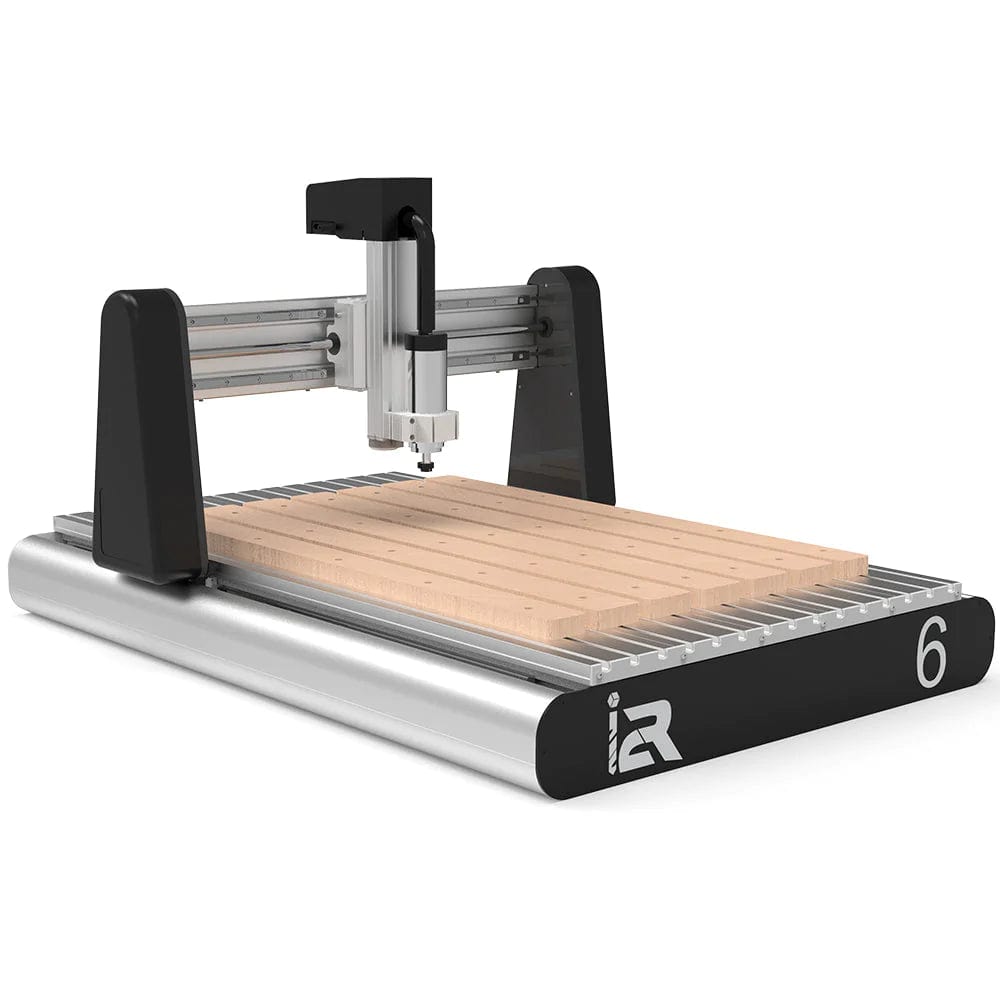

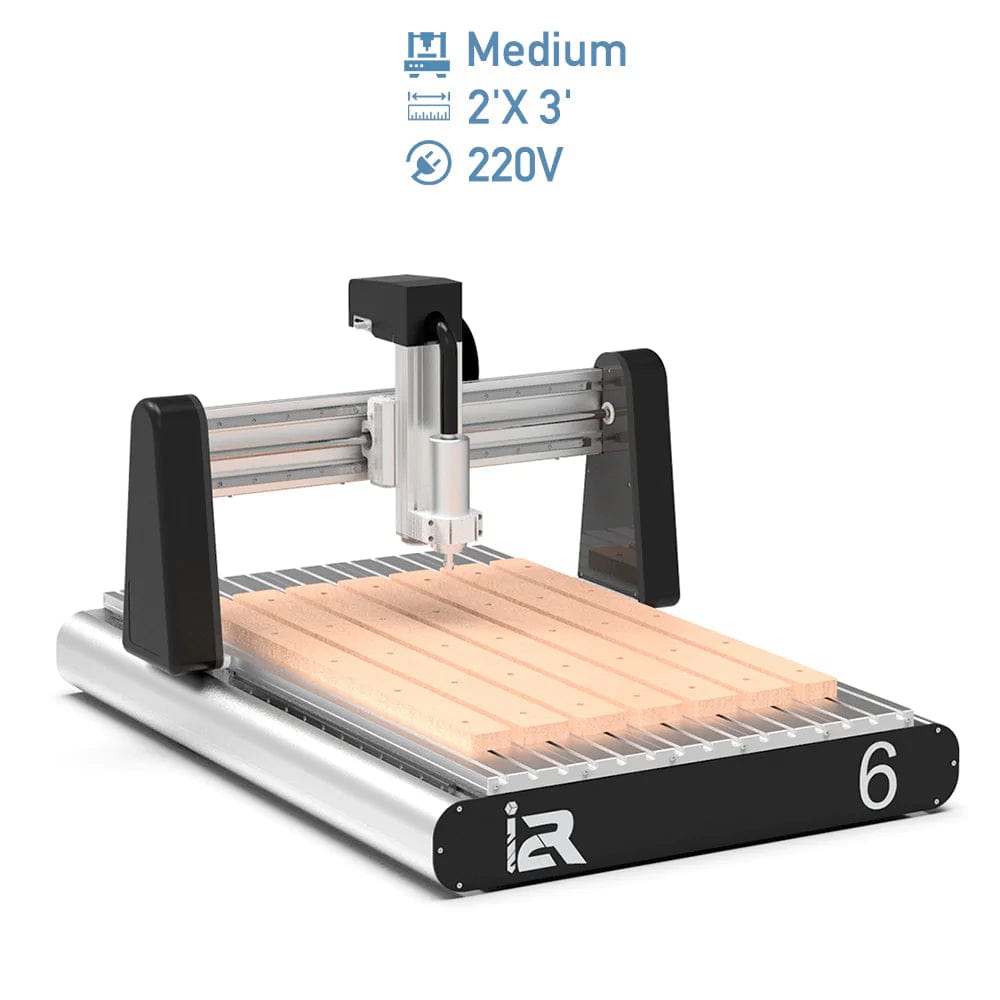

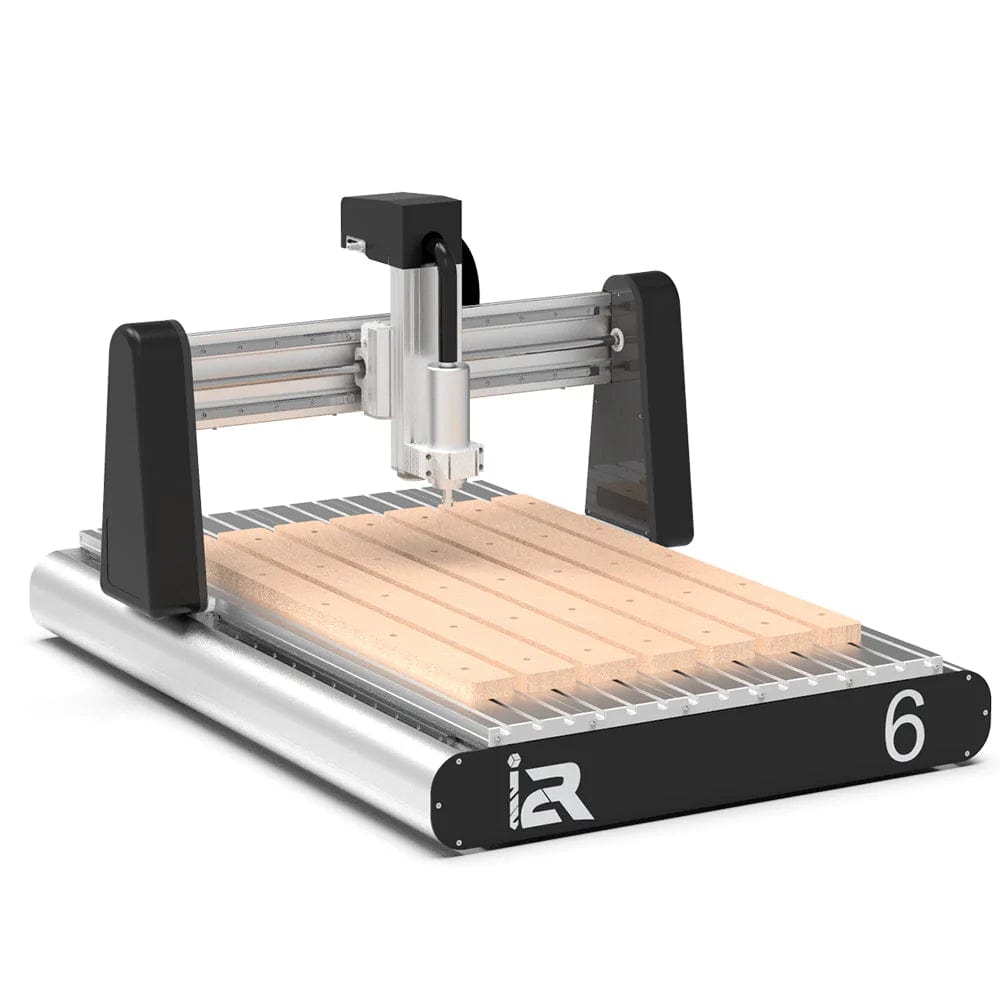

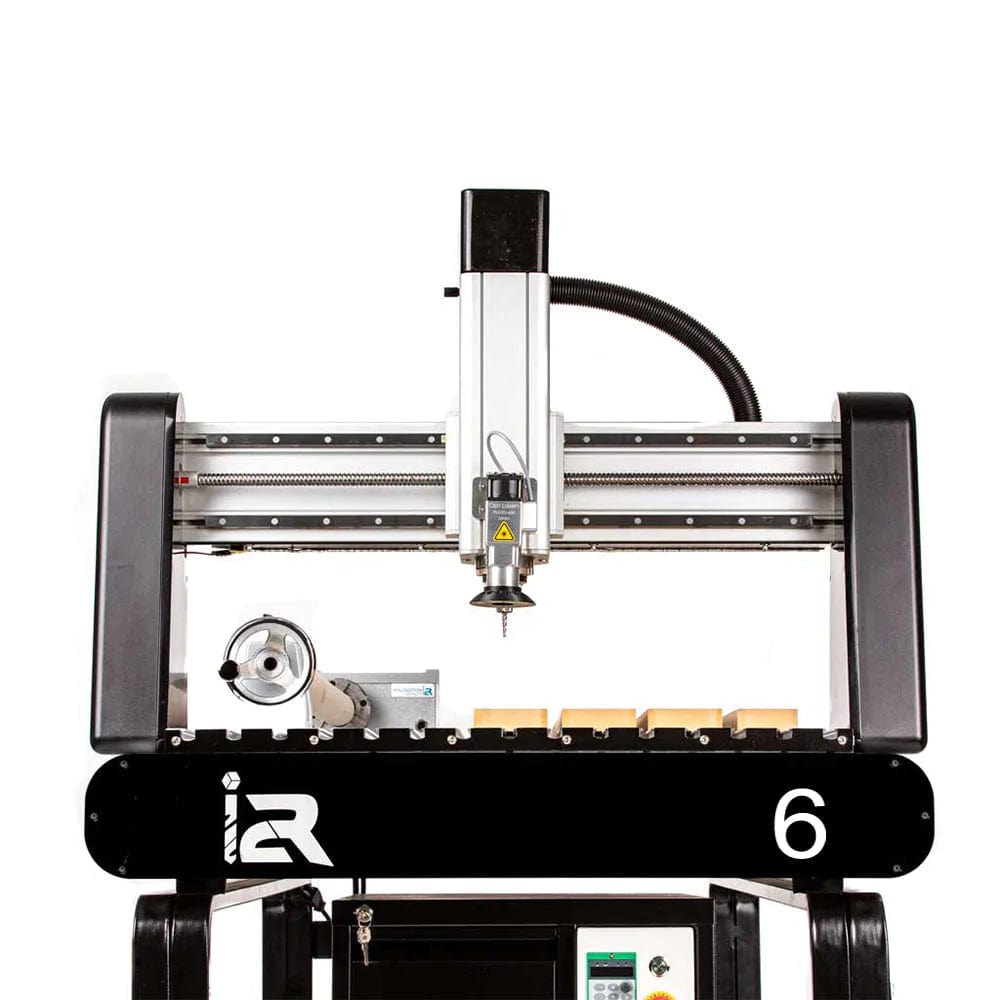

B SERIES CNC - B23 - 2HP SPINDLE - MEDIUM 2' X 3' - 220 V - UNIT ONLY
The B23 CNC Machine makes no compromises on quality and efficiency. i2R CNC router series takes full advantage of its features and UCCNC software. Intuitive Touch screen, Real time 3d feedback during cuts. i2r CNC machines allow you to take full control of your CNC Machine.
B SERIES CNC - B23 - 2HP SPINDLE - MEDIUM 2' X 3' - 220 V Product Features
Easy to Assemble CNC Machine
This CNC machine is very intuitive and easy to assemble, designed with comfort and ease of use to make sure you have maximum uptime out of the box.
Compact Design
The B23 Features a 2 HP Air-Cooled Spindle (220V) operation over a small 24” x 36” work Envelope and is equipped with 3-Axis CNC Table & Gantry
UCCNC Software
Comes complete with Touch Screen Support, Real Time Control , 3D Feedback During Cuts , Reads G-Code and you can Control Everything Straight From Your PC
Lifetime Customer Service
i2rCNC Experts are readily available for you and will have your back every time you need them for greater peace of mind and maximum uptime if you ever incur a problem.
TECHNICAL SPECIFICATIONS
TRAVELS:
i2R B23
- X axis: 610mm (24″)
- Y axis: 915mm (36″)
- Z axis: 135mm (5.31″)
SPINDLE:
- Spindle Power: 1hp (1.5 W)
- Spindle Type: Electro Spindle
- Spindle Speed: 0-24,000 RPM
MAXIMUM FEED RATE:
- X-, Y-, and Z-Axis: 150 in./min
POWER REQUIRED:
- 115V, 50~60Hz, 13A, 1-Phase
MACHINE SPECIFICATIONS:
i2R B23
- Table Size: 28.4″ x 37″
- Machine Weight: 176 lbs
- 5 1/2″ (139.0mm)
LINEAR MOTION COMPONENTS:
- Precision Linear Guideway X/Y/Z
- Precision BallScrew X/Y/Z
- BallScrew Diameter 15mm
MACHINE CONSTRUCTION:
- Machine Base: All Welded Steel Frame
- Working Table: High Rigidity Aluminum Extrusion
- Gantry Bridge: High Rigidity Aluminum Extrusion
- Gantry Supports: Aluminum Billet Machined
- BallScrew Diameter
RESOLUTIONS & ACCURACY:
- Positional Accuracy +/- 0.001″inc (.02mm)
CONTROLLER:
- UCCNC PC Control Software
ACCESSORIES (INCLUDED):
- Tool Touch Off
- MDF Spoilboard
- Wrenches
- Collets 1/4″ and 1/8″
- Ethernet Cable
