Description

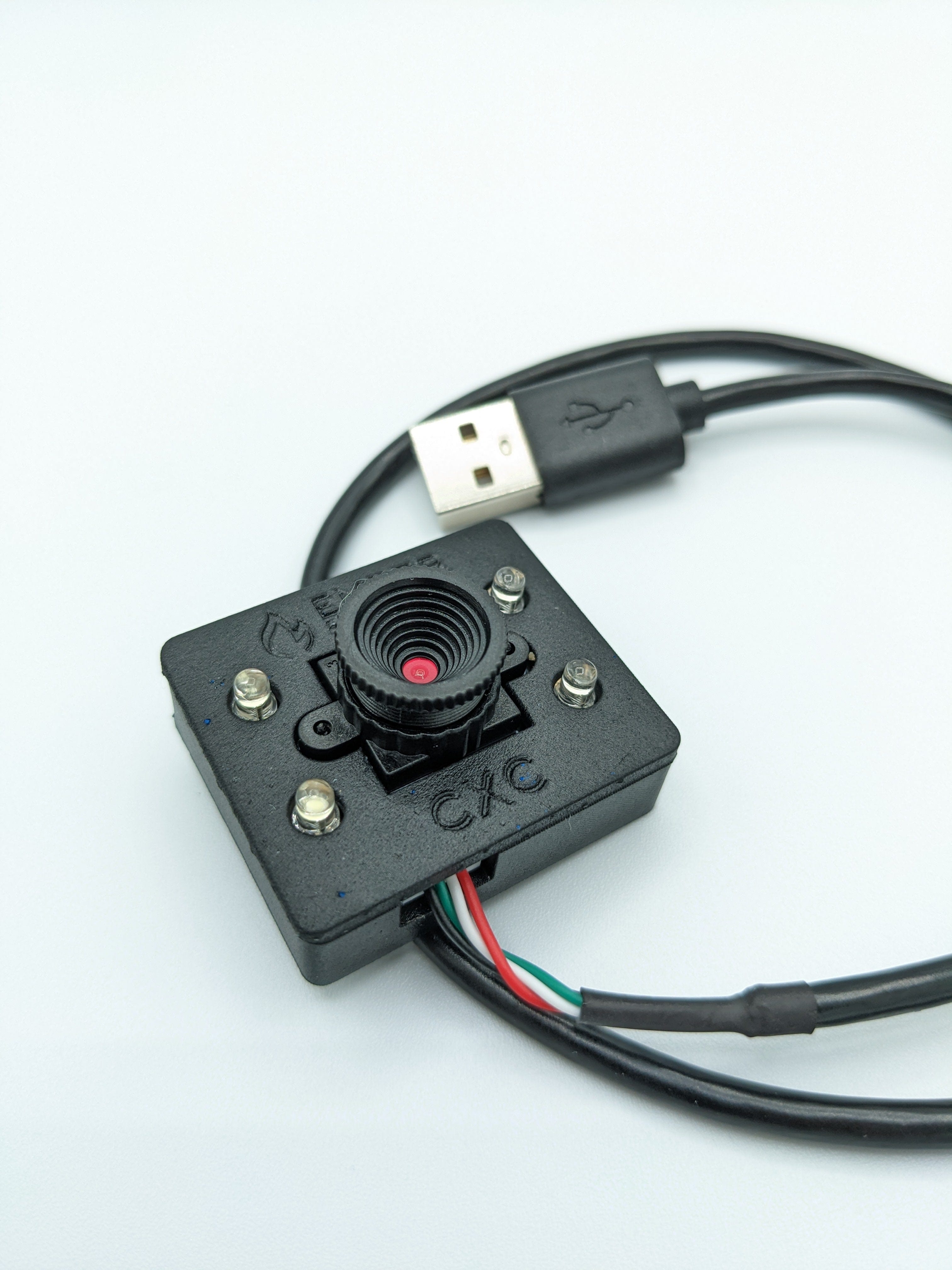

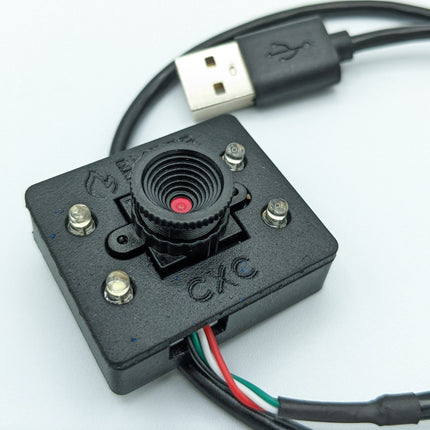

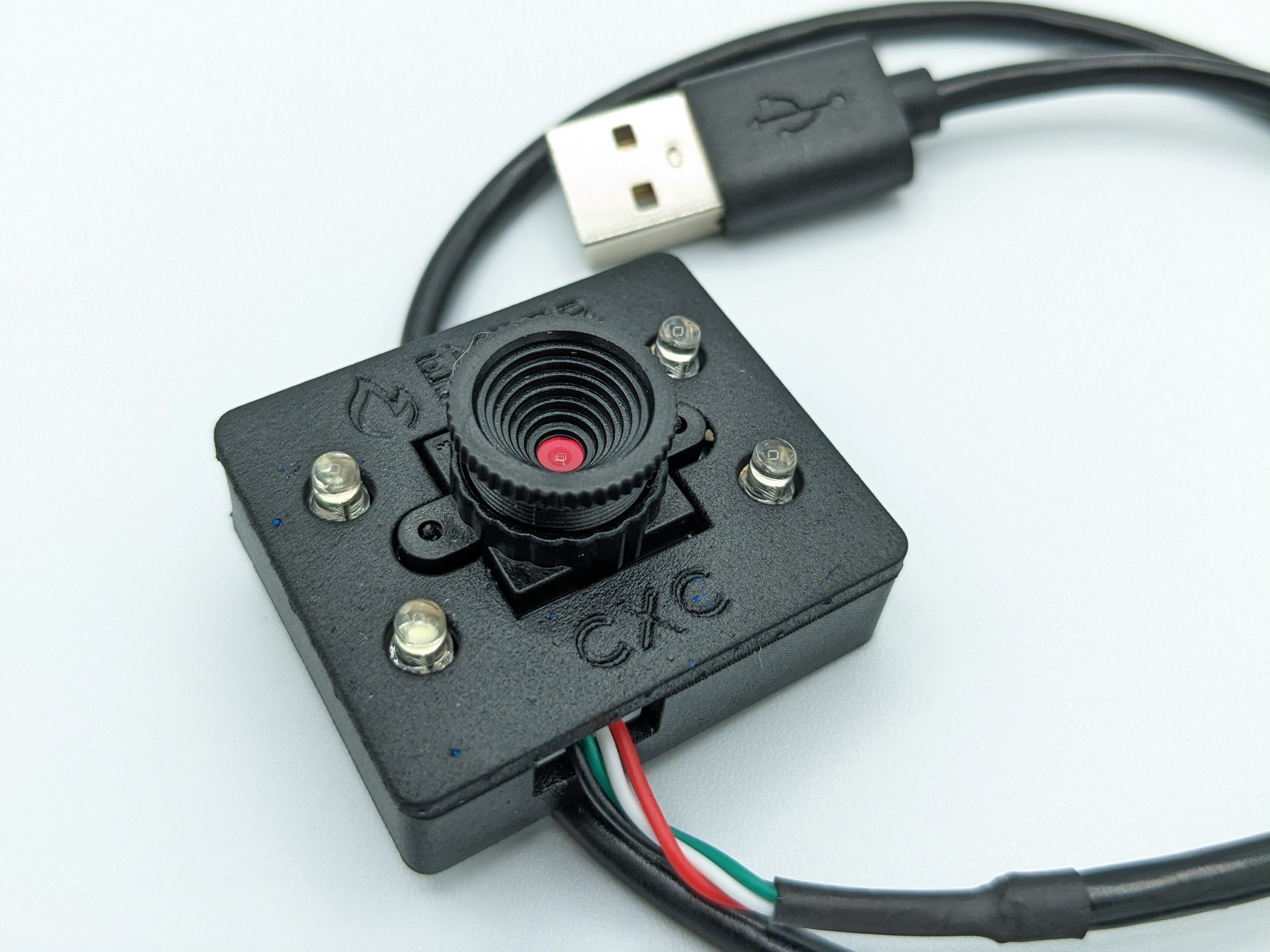

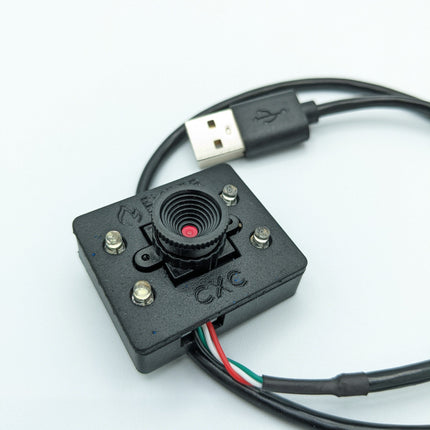

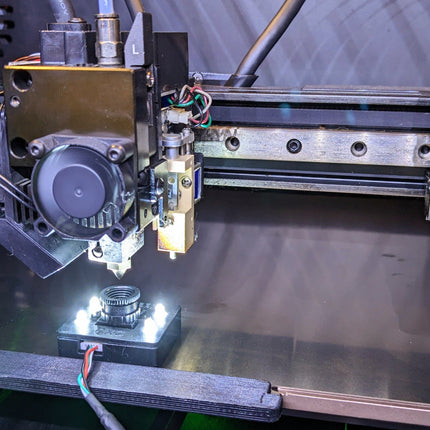

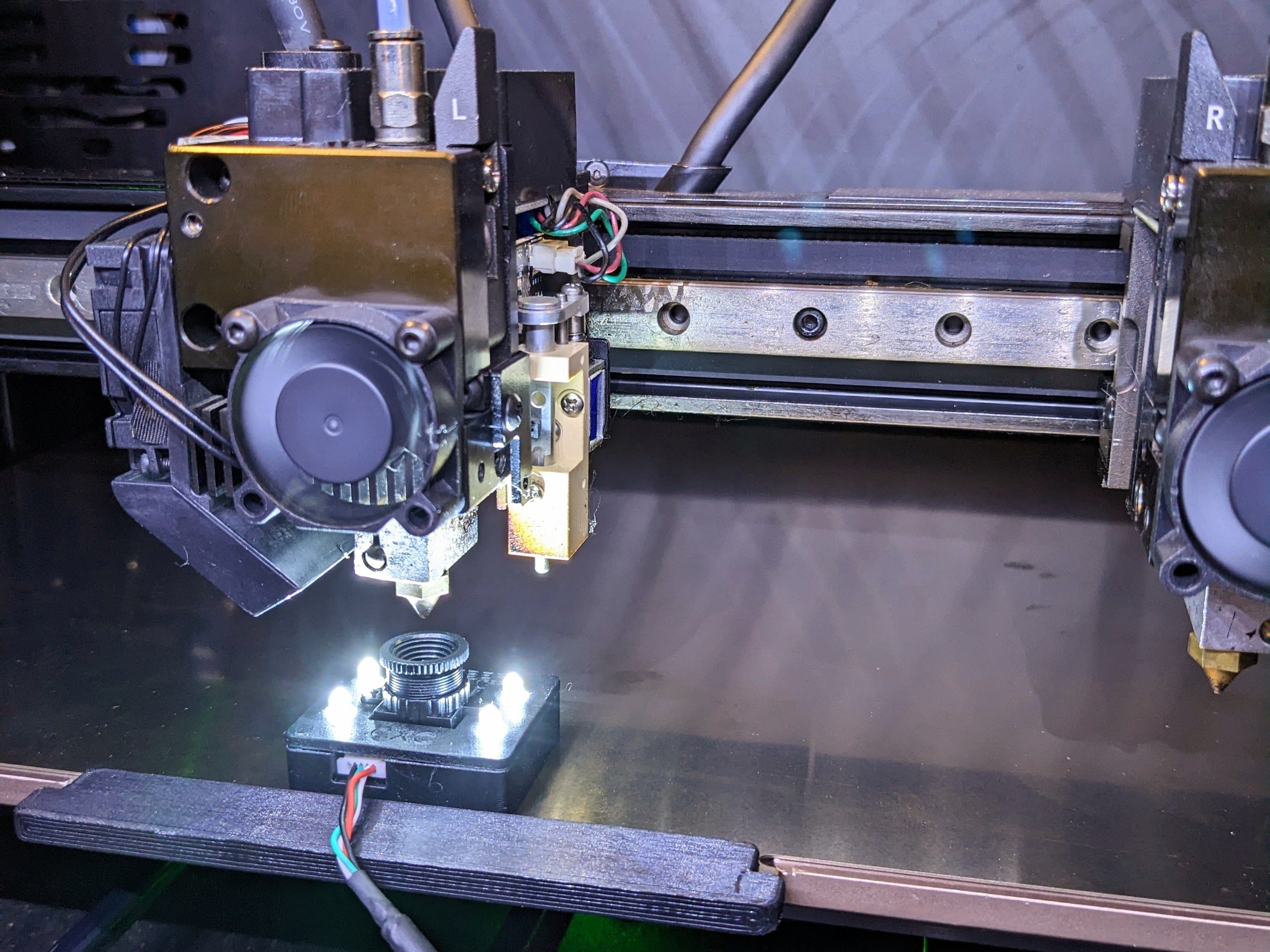

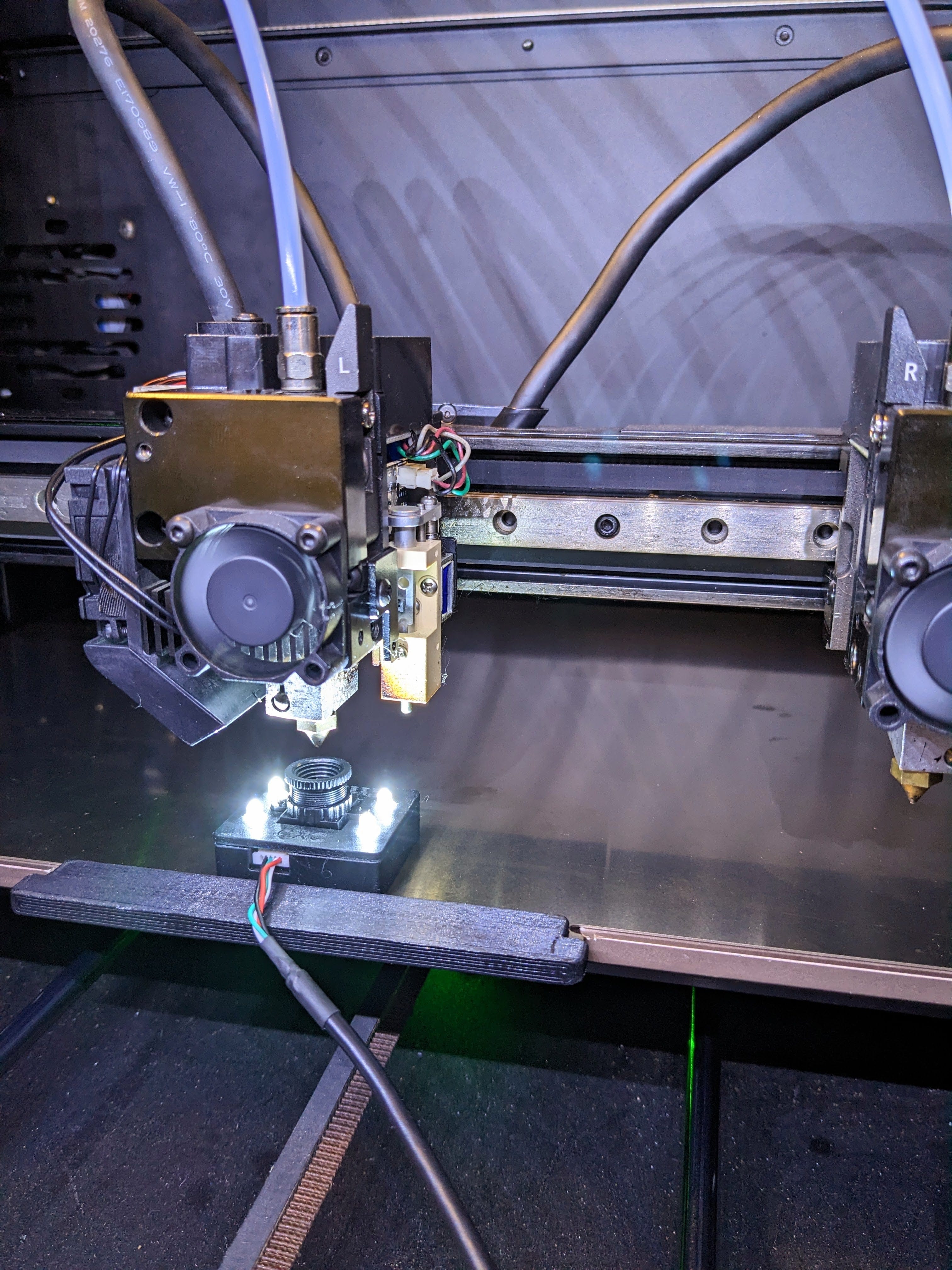

Ember Prototypes Camera-Assisted XY Calibration Tool

The Camera-Assisted XY Calibration Tool (CXC) is a small device used to easily perform XY offset calibration on dual extruder and IDEX 3D printers, without the need for printing line patterns.

Ember Prototypes Camera-Assisted XY Calibration Tool Product Features

• Universal Compatibility
  The CXC Will work for any printer that has the ability to manually jog in 0.1mm Increments or lower and manually edit the XY nozzle offsets.


• Maximize Efficiency

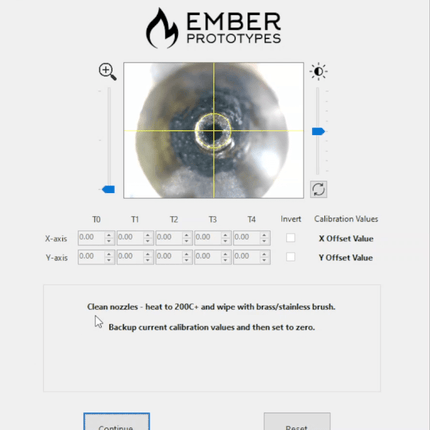

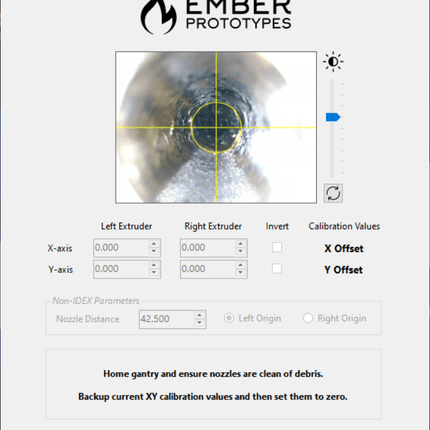

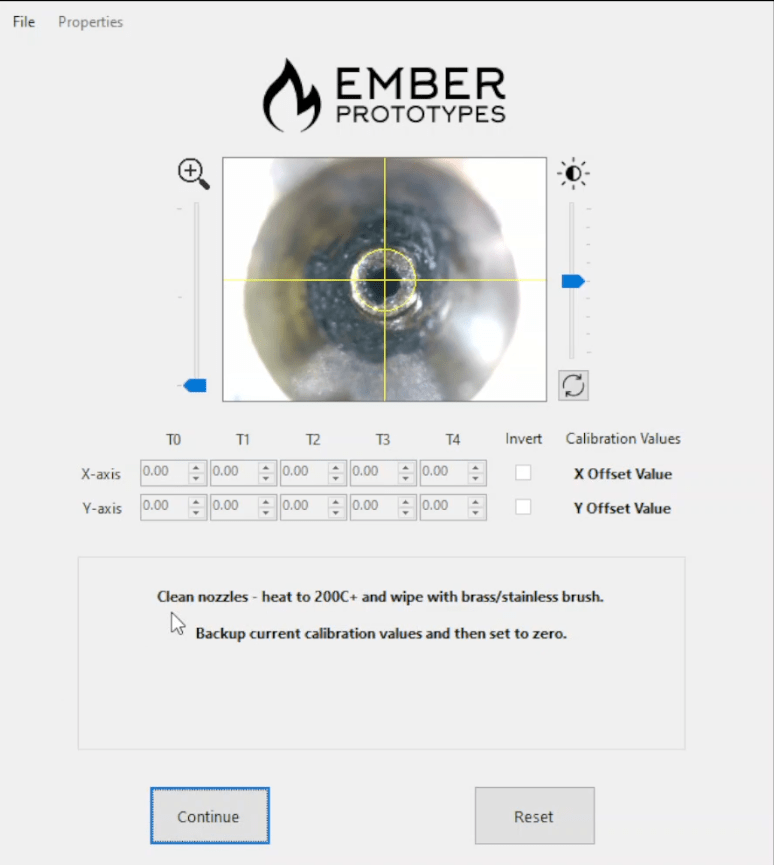

  Calibrating your printer used to be a painstaking and time-consuming process that left room for human error. The CXC solves this problem for 3D printing operators by introducing a camera assisted calibration process.


• User Friendly

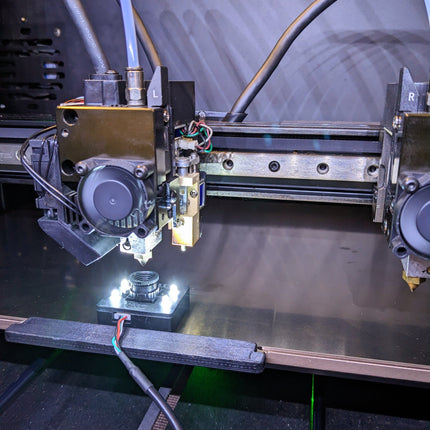

  The CXC was designed to be as simple and universal as possible. The CXC can be installed on any printer and calibration takes less than 5 minutes.


• Simple Set-Up

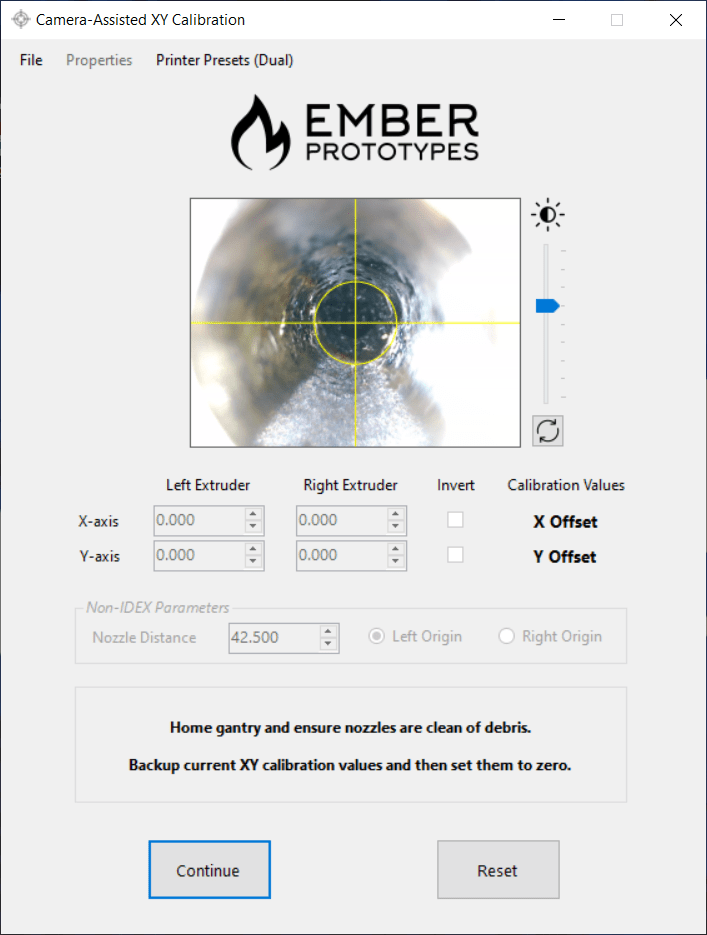

  Installation and setup appear to be relatively simple, as seen in a step-by-step instructional video released by Ember Prototypes. All you’ll need is a Windows-capable computer, the ability to move your 3D printer’s gantry in steps of 0.1 mm or less, and the ability to manually clear and override XY calibration values.



Set Up Video

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
